- Applicable Industries: Manufacturing Plant, oil filed
- Material: tungsten carbide, Tungsten carbide
description

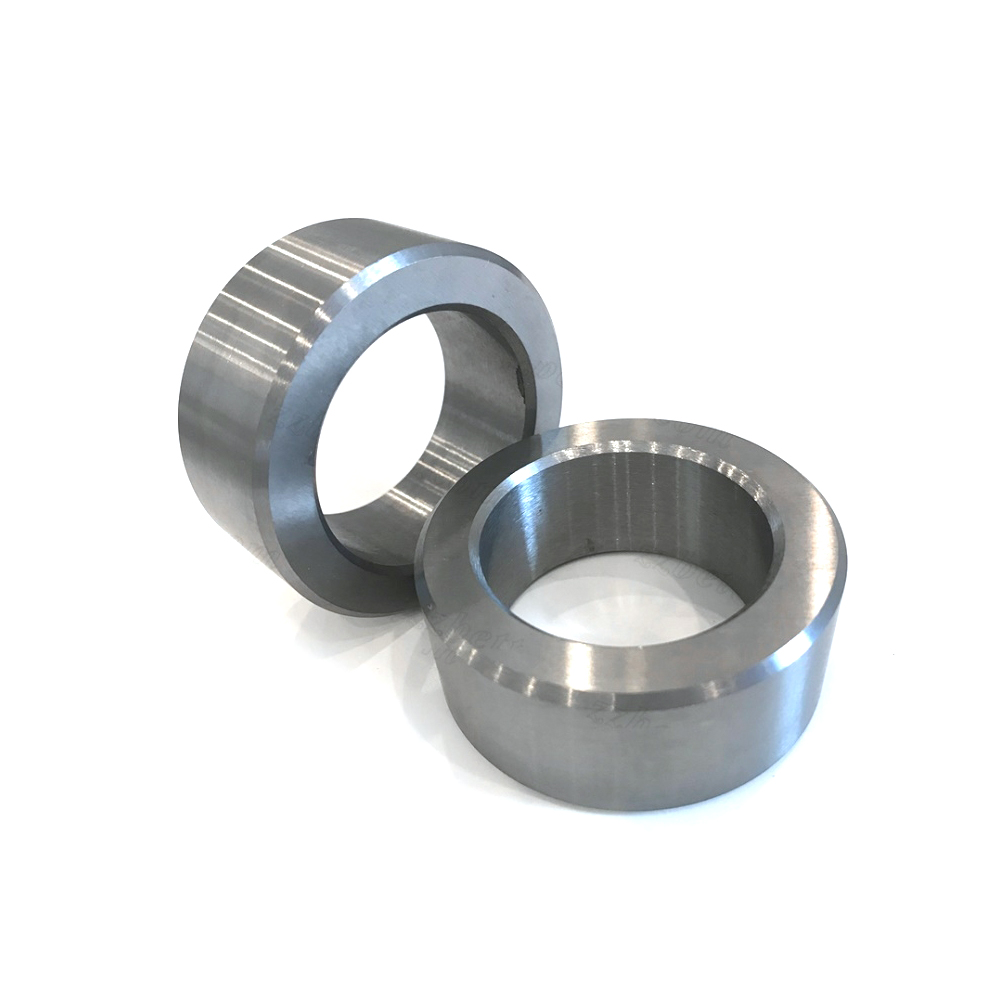

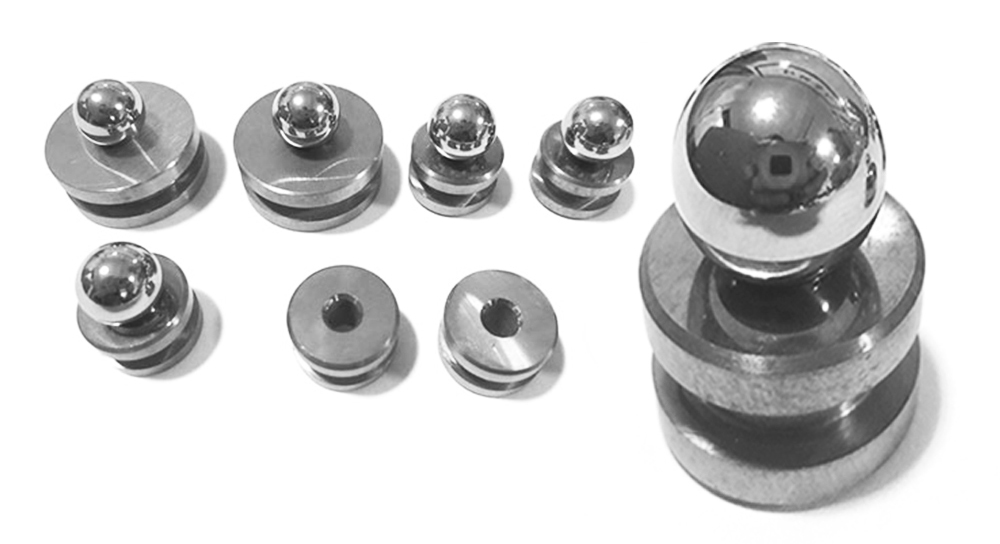

Tungsten carbide seats are fitted with tungsten carbide balls. Cemented carbide ball and seat have good sealing, wear resistance and corrosion resistance, which are widely used in oil drilling, deep sea drilling industry.
Application: widely used in oil filed for seal
Grade: YG6.YG8.YG11.YG13 Etc
Features: with high strength and hardness
Grade | WC (%) | Cobalt（%） | Density (g/cm³) | Hardness (HRA) |
YG6 | 94 | 6 | 14.9 | 90.5 |
YG8 | 92 | 8 | 14.7 | 89.5 |
YG11 | 89 | 11 | 14.4 | 87.5 |
YG13 | 87 | 13 | 14.4 | 87.5 |
Item | Ball (mm) | Ball seat(mm) |
1 | 15.875 | 20.142*11.89*12.7 |
2 | 19.05 | 23.317*14.6*12.7 |
3 | 23.8125 | 29.667*17.83*12.7 |
4 | 28.575 | 35.255*21.08*12.7 |
5 | 31.75 | 37.54*24.38*12.7 |
6 | 34.925 | 43.688*26.57*12.7 |
7 | 42.8625 | 51.05*32.13*12.7 |
8 | 57.15 | 78.029*44.5*19.05 |
