- Material: PCD Diamond
- Application: for Edge Banding Machine
- Place of Origin：China
- Typical layout: 3+3Z
description

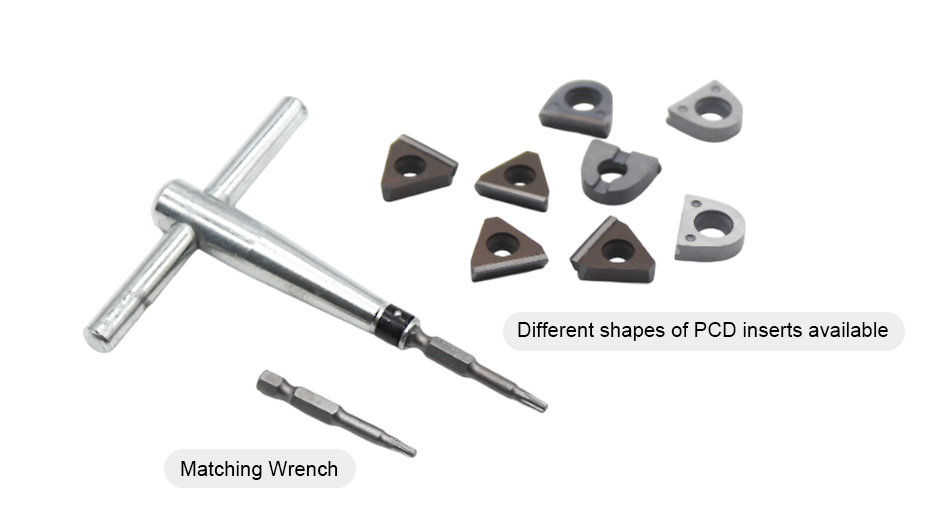

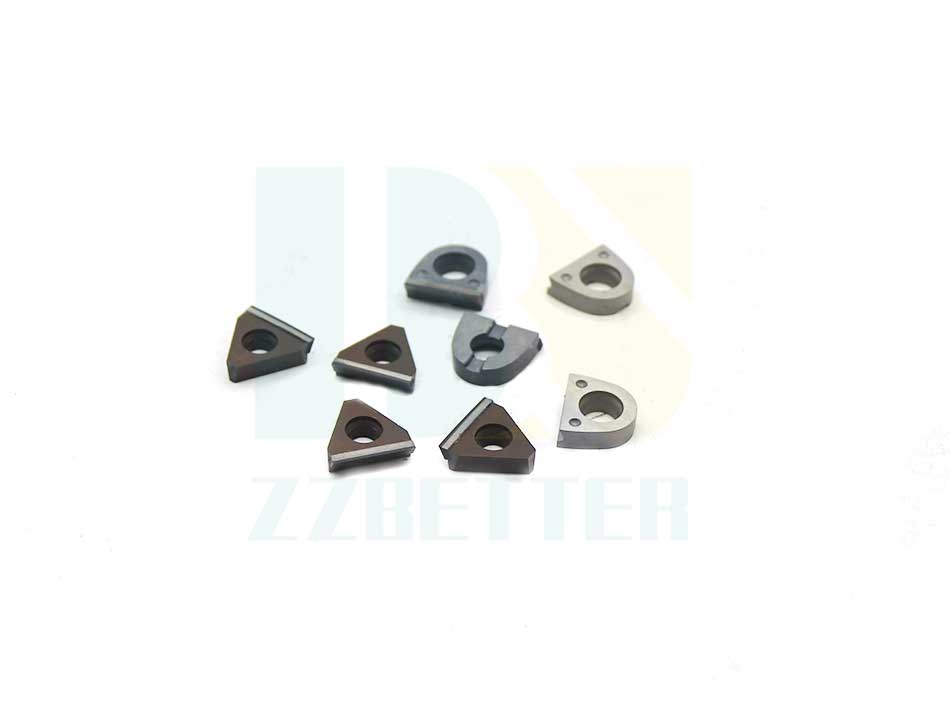

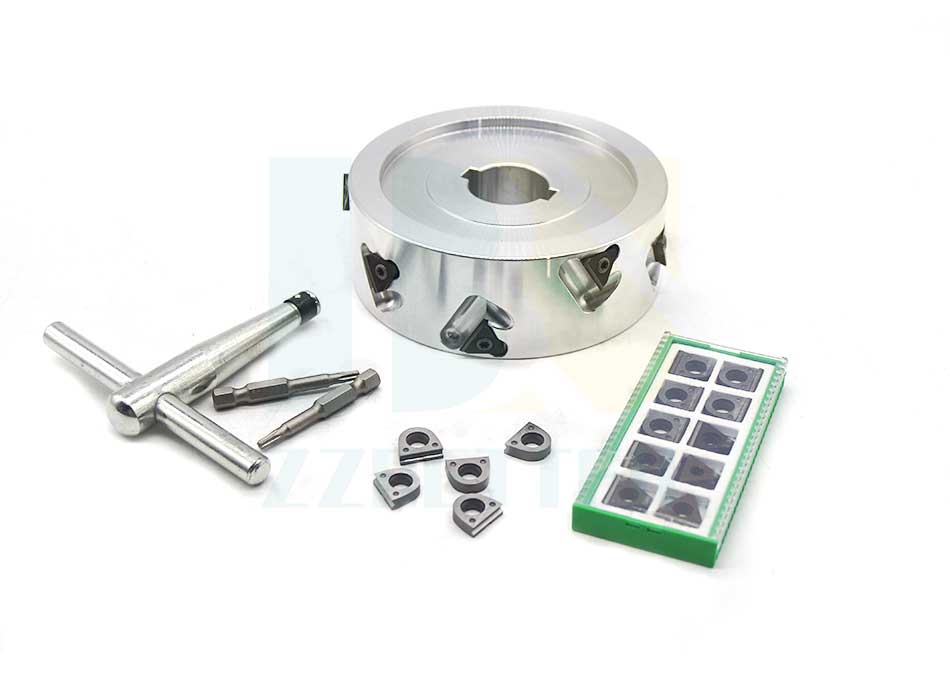

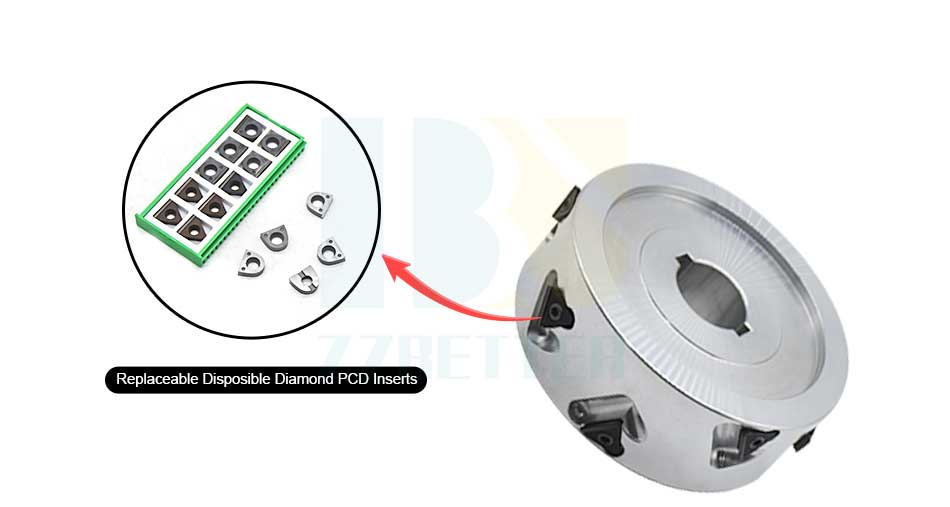

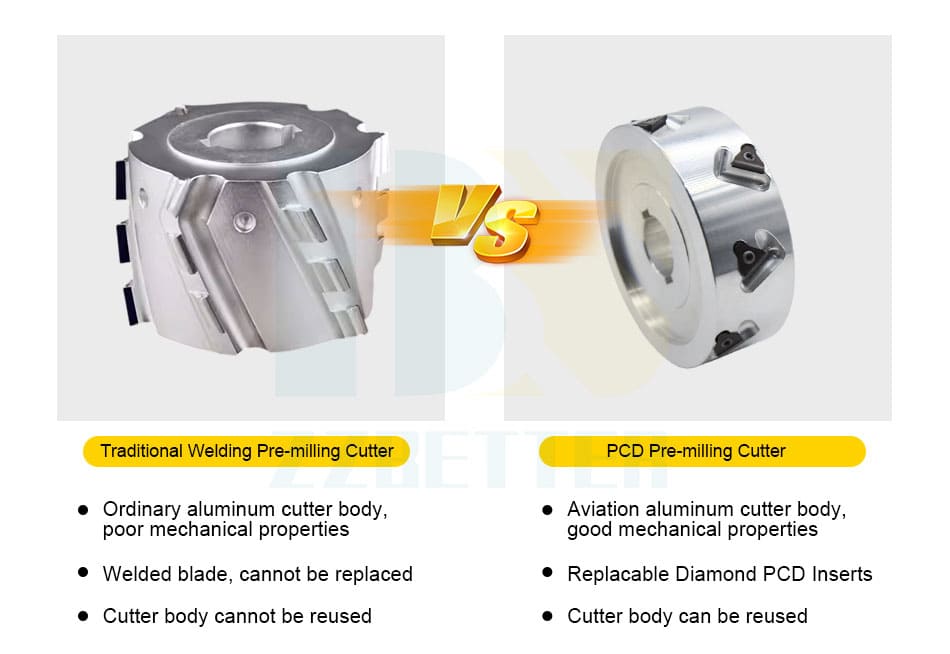

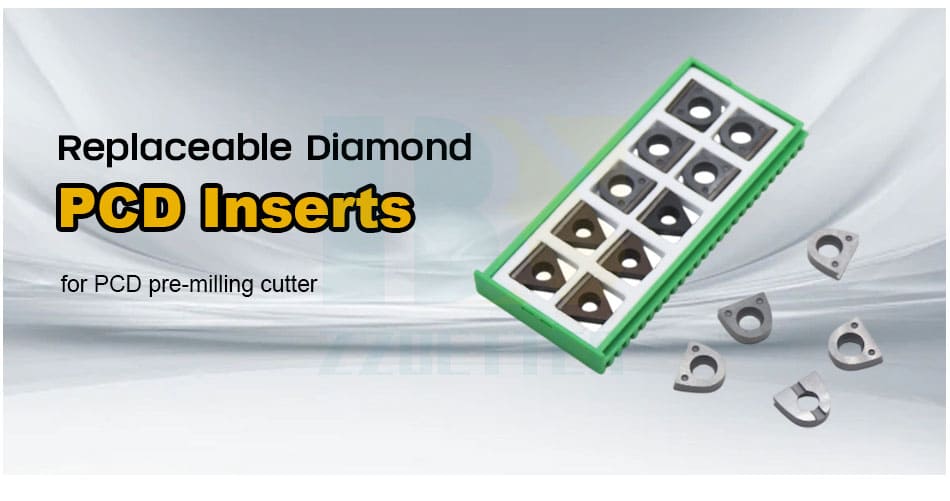

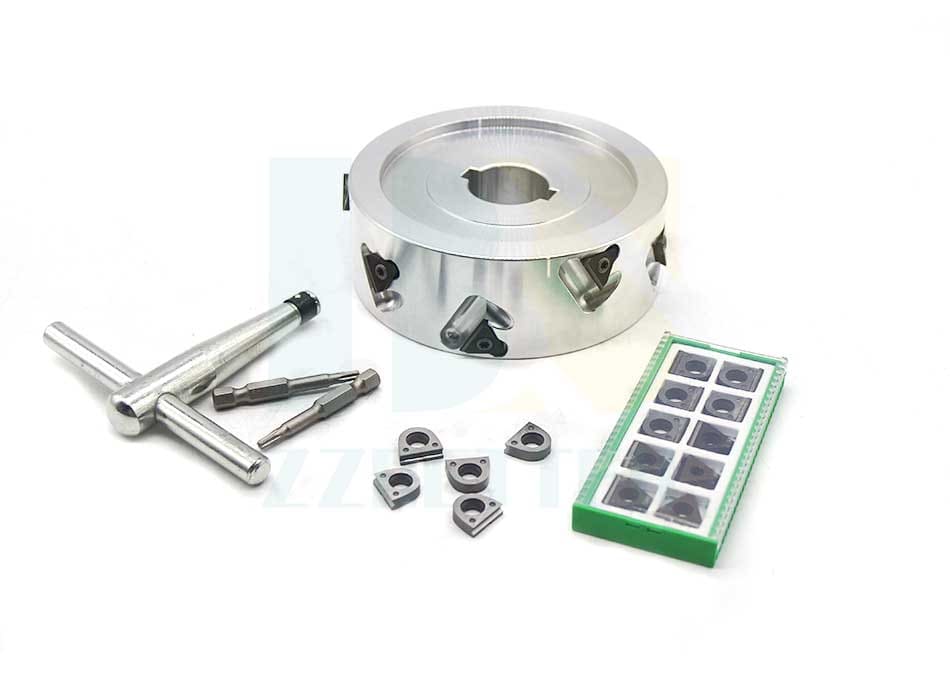

Replaceable diamond PCD (Polycrystalline Diamond) inserts for PCD pre-milling cutters are precision-engineered components crucial for efficient and cost-effective machining of demanding materials. Usually tiny and finely formed, these inserts are made of polycrystalline diamond, a substance with remarkable hardness and wear resistance that much outperforms that of traditional cutting tool materials. They are easily replaceable and mounted on a pre-milling cutter body, greatly increasing the cutter's operational life. Their main purpose is aggressive pre-machining, which is frequently employed in composite material machining and woodworking applications like edge banding. Because changing a worn insert is significantly less expensive than replacing the complete cutter, the use of replaceable inserts reduces downtime and related expenses. The workpiece is ready for further finishing procedures thanks to PCD's exceptional cutting capability, which guarantees a clean, accurate cut. In a variety of high-precision manufacturing processes, this method maximizes output and material use.
Item Code | OD(MM) | H(MM) | ID(MM) | TEETH | Note |
BT805020 | 80 | 50 | 20 | 3+3Z | Accept Customize sizes |
BT806020 | 80 | 60 | 20 | 3+3Z | |
BT1006520 | 100 | 65 | 20 | 3+3Z | |
BT1004830 | 100 | 48 | 30 | 3+3Z | |
BT1254030 | 125 | 40 | 30 | 3+3Z | |
BT1254330 | 125 | 43 | 30 | 3+3Z | |
BT1503530 | 150 | 35 | 30 | 4+4Z | |
BT1504030 | 150 | 40 | 30 | 4+4Z | |
BT1506530 | 150 | 65 | 30 | 4+4Z |

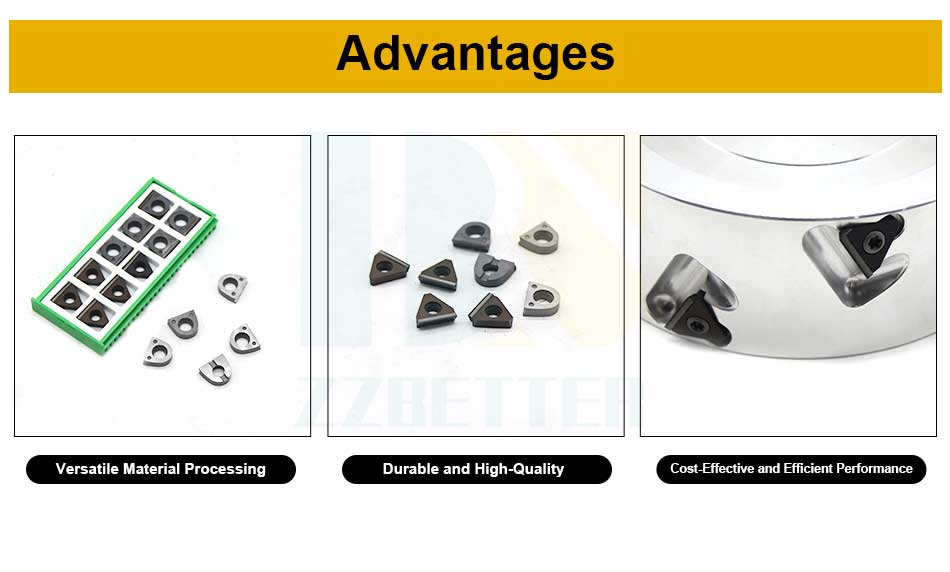

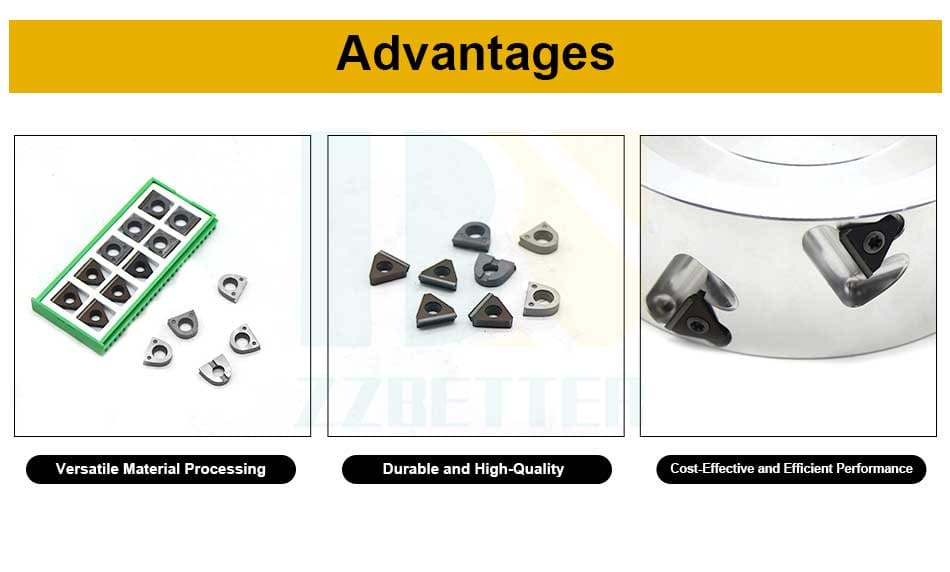

Advantages:
1.The combination of PCD and tungsten carbide provide high hardness and wear resistance, which is very suitable for heavy duty use.
2. High-quality PCD diamond inserts lead to long service time, high rigidity, and high performance. Reduce replacement frequency.
3. By leading machine manufacturers’ standards. ZZbetter PCD inserts are designed to meet the standard of famous machine providers, so the PCD pre-mill inserts can be widely used in many machines
4 . Strong quality test process. We provide test reports for the PCD inserts and pack them strongly to avoid breaking during shipment. Video and photos can be provided to buyers before shipment.
5.The inserts are largely used in repair shops who repair the woodworking machines, and largely used in woodworking machine manufacturers.
6. Customized PCD inserts for edge bander cutters are available.
Applicable to the machine brands: Biesse, SCM, Brandt, IMA, Homag, Holzher, Griggio, Fravol, Felder, etc.
Suitable for woodworking board types: MDF, Chipboard, and Hardwood.
