How much do you know about tungsten carbide strips?

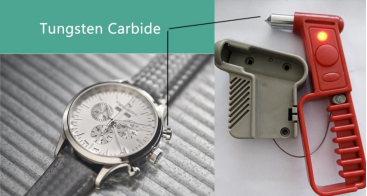

It doesn't matter if you have used tungsten carbide strips or not, but I believe you may know something about tungsten carbide. We can often see tungsten carbide products in our life. For example, when we take the bus, we can see a hammer by the bus window, this is what we use to break the window to escape when we encounter an emergency. Generally, this kind of hammer will be made of tungsten carbide, because of its high hardness. If you are accustomed to wearing a watch, there is also a hard alloy in the watch because of its high wear resistance......

undefined

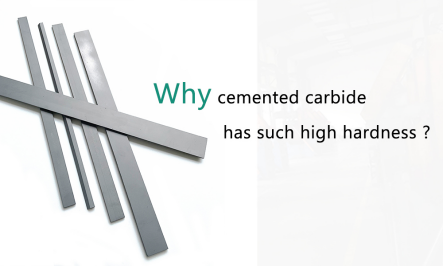

The hardness of cemented carbide is second only to diamond has extremely high wear resistance. Do you know why cemented carbide has such hardness?

undefined

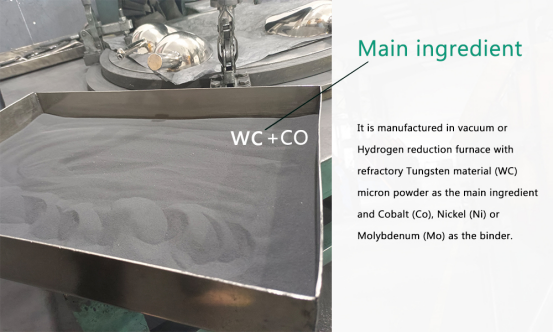

Because tungsten carbide is a sintered metallurgical product of powder form. It is manufactured in a vacuum or Hydrogen reduction furnace with refractory Tungsten material (WC) micron powder as the main ingredient and Cobalt (Co), Nickel (Ni), or Molybdenum (Mo) as the binder.

undefined

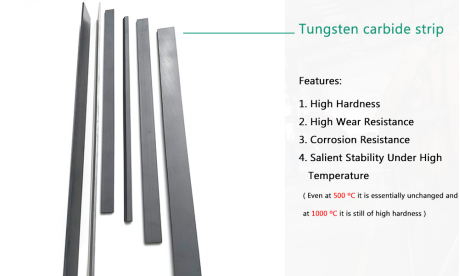

Tungsten carbide not only has the characteristics of high hardness and high wear resistance but also corrosion resistance and salient stability under high temperature (even at 500 ºC it is essentially unchanged and at 1000 ºC it is still of high hardness)
Tungsten carbide strips have all the characteristics of tungsten carbide.
undefined

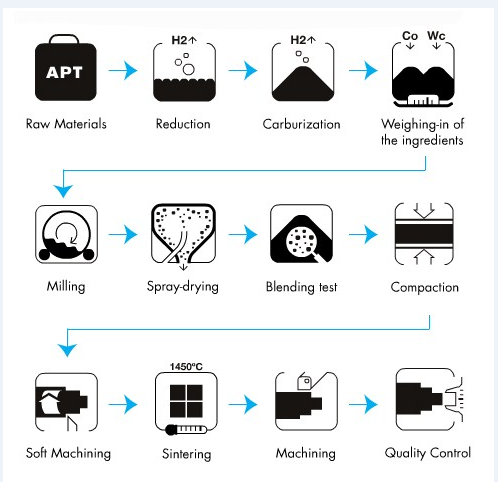

Produce process of tungsten carbide strips
Carbide strips are referring the rectangular, also known as tungsten carbide flats. It is produced through powder(Mainly WC and Co powder as per formula) mixture, ball milling, spray tower drying, extruding, drying, sintering, (and cutting or grinding if necessary) final inspection, packing then delivery, middle inspection is done after each process to make sure only the qualified products can be moved to next production process.

undefined




Quality Control of tungsten carbide strips

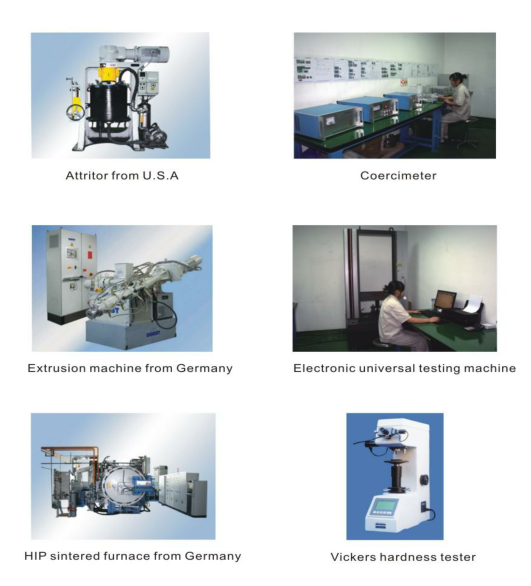

The HRA tester, TRS tester, Metallographic microscope(Check microstructure), coercive force tester, cobalt magnetic tester are used to inspect and make sure the material of carbide strip is good qualified, besides, drop test is added specially to the carbide strip inspection to make sure there is no material flaw in the whole long strip. And the size inspection as per order.

undefined

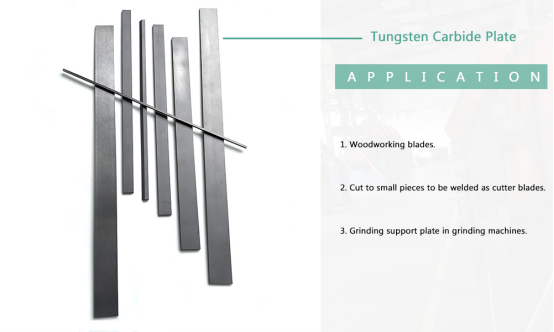

Application of tungsten carbide strips
The contents of WC and Co in tungsten carbide strips with different uses are not consistent, and the application range is wide. Tungsten carbide strip is widely known as one kind of carbide cutting tool. Which is suitable for treating solid wood, shaving board, and middle-density fiberboard? Cemented carbide strips can be used to make woodworking tools, such as forming tools, reamer, serrated knife blades,s, and various blades.

undefined

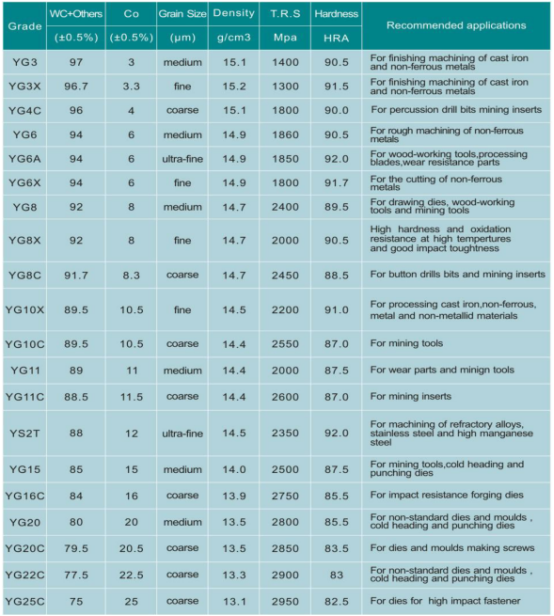

Select grade
The hardness increases as the cobalt decreases and the
diameter of tungsten carbide particles decreases. The flexural strength increases as
the cobalt increases and the diameter of tungsten carbide decreases.
Therefore, it is a very important step to choose the most suitable grade according to
different uses, different materials processed, and different working environments.
Improper selection of grades will cause problems such as chipping, fracture, easy wear,
and short life.

There are many grades to choose
undefined

How to select the right grade quickly?
If you don’t know which grade your product is suitable for, Welcome to contact us.
