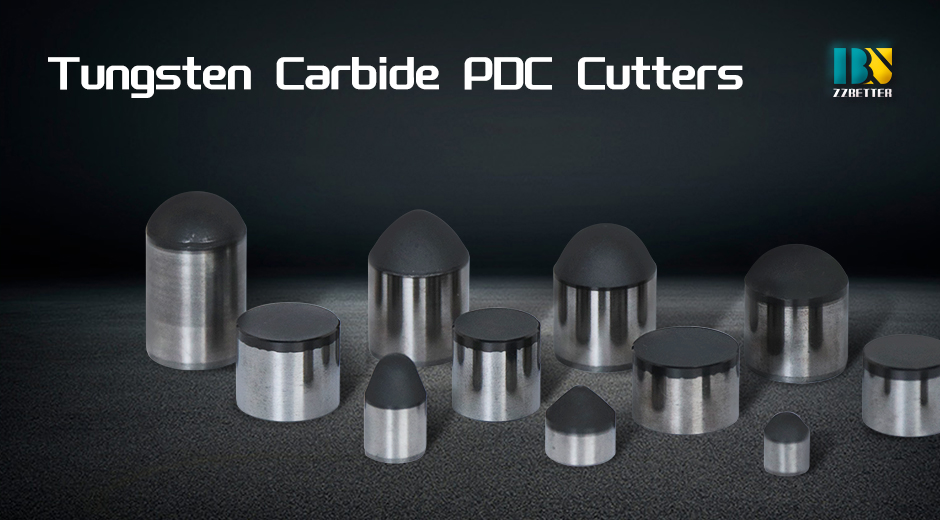

Oil drilling bits PDC dome cutters 1313 1616 1919
  • Oil drilling bits PDC dome cutters
  • PDC DTH drill bits
  • High hardness PDC dome button
  • PDC dome cutters 1313 1616 1919

description

undefined

undefined


Brief introduction of PDC:

Polycrystalline Diamond Compacts


• PDC cutters are also named Polycrystalline Diamond Compact cutters, PDC bits, PDC inserts. PDC cutter is a kind       of super hard material.

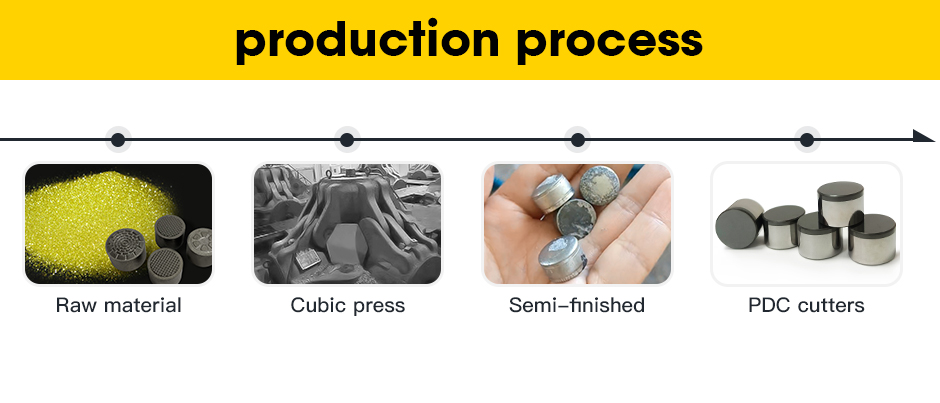

• The PDC cutters consist of a Polycrystalline Diamond layer and carbide substrate. The diamond layer and substrate    are sintered under ultra-high pressure and ultra-high temperature. In short, we say it’s HTHP Press.

• The diamond is grown on the carbide substrate, not coated. They are firmly combined.



Main Advantages

• High density (low porosity)
• High compositional & structural homogeneity
• Excellent bonding between diamond particles
• High wear resistance
• High impact resistance
• High thermal stability
• Optimized interface between diamond and tungsten-carbide layers for excellent binding

The working life of the PDC cutters is increased by more than 6 times

The production efficiency is increased by more than 20%.

Make the target for one time completed drilling become possible

Reduce the frequency of replacement of drilling bits and the labor intensity of workers.



Applciations of PDC cutters

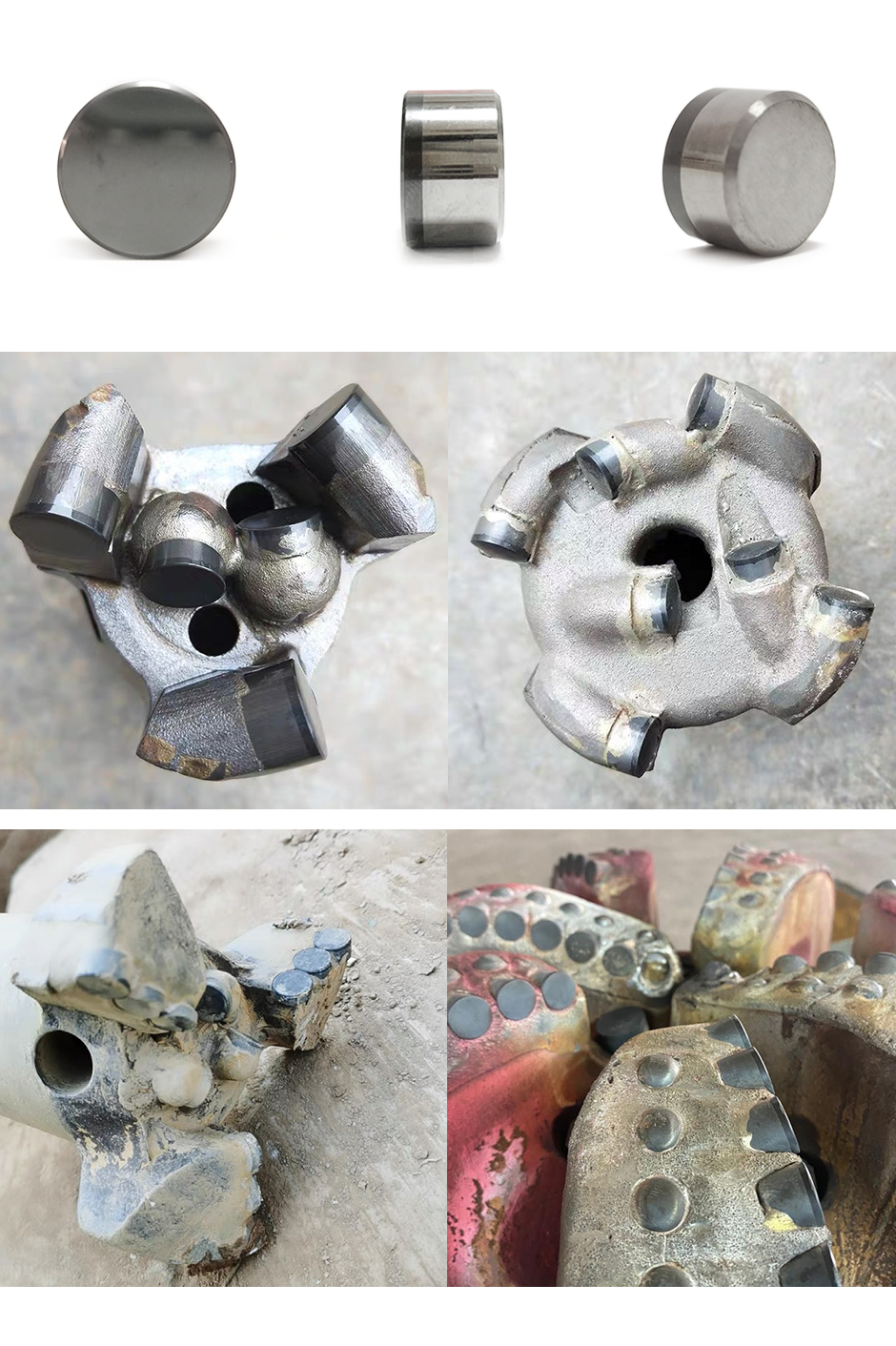

-Oil and gas PDC bits as face, gauge, and backup cutters

-PDC bits for geothermal drilling

-PDC bits for water well drilling

-PDC bits for directional drilling

-Reaming tools

-Core bits

-Bearing elements



Oil drilling bits PDC dome cutters 1313 1616 1919Oil drilling bits PDC dome cutters 1313 1616 1919Oil drilling bits PDC dome cutters 1313 1616 1919

Sizes of Dome PDC Cutters



Model No.

Diameter
(mm)

Total Height
(mm)

Radius

Diamond Height
(mm)

Grade

DC110170

11.00

17.0

5.59

4.60

Oil drilling

DC121170

12.07

17.0

6.76

3.65

Oil drilling

DC131170

13.10

17.0

7.54

3.78

Oil drilling

DC139200

13.90

20.0

7.54

4.62

Oil drilling

DC159240

15.90

24.0

8.26

5.94

Oil drilling

DC191229

19.07

22.9

9.93

7.20

Oil drilling
