What Are Carbide Rods Used For?

2022-02-15 Share


What are carbide rods used for?

Cemented carbide round bars have a series of excellent properties such as high hardness, high wear resistance, high strength, bending resistance, and long work life.

There have different shapes of the tungsten carbide rods, such as solid carbide rods, carbide rods with one straight hole, carbide rods with two straight holes, carbide rods with two helix coolant holes, Solid carbide tapered rods, other special shapes.

Different shapes and different grades Cemented carbide rods are used for different applications.

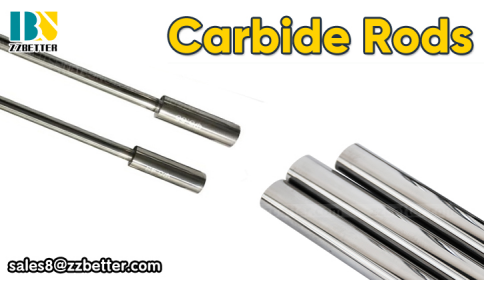

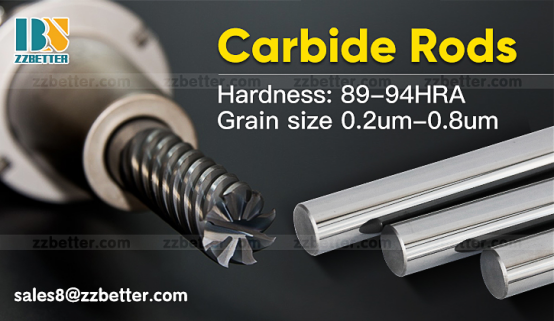

Carbide rods for making cutting tools

The main application of the carbide rods is for making cutting tools. such as the drills, automotive cutting tools, printed circuit board cutting tools, engine cutting tools, integral end mills, dental burs, integral reamers, engraving knives, etc. Cemented carbide rods for making cutting tools, the popular grades are always content 6% Cobalt to 12% Cobalt. For making end mills, always choose solid carbide rods, also named carbide rods without the hole. For making drills, the carbide rods with coolant holes are a good choice.

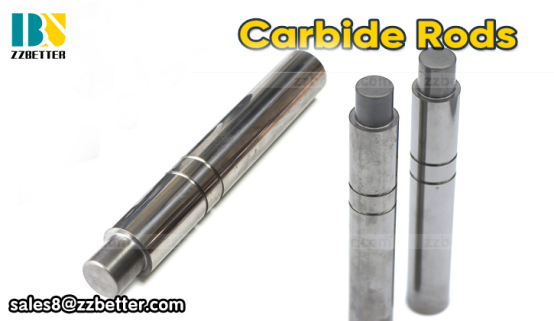

Carbide rods for making punches

Tungsten carbide round bars can be used for making punches too. Those carbide rods are with cobalt from 15% to 25%. The punches also called tungsten carbide punch dies. Tungsten Carbide Punches and Dies are “made better to last longer” as compared to steel punches and die with less maintenance downtime. There are different shapes, such as carbide punches with key grooves, carbide punches with taps, carbide straight punches, key flat shank carbide punches. Solid carbide punch is one of forming tools, is used for producing various specific parts.

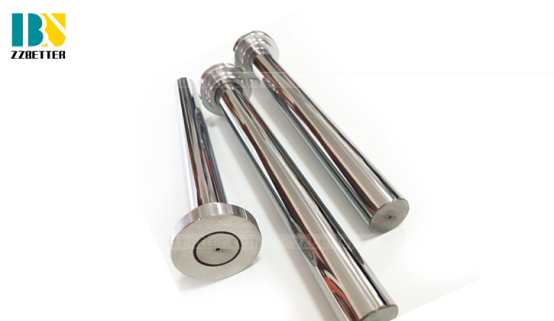

Carbide rods for making mandrels

Carbide rods for making mandrels are used to draw tubes and to determine the internal diameter of the pipe. The mandrel is fixed on a (mandrel) bar. The mandrel is inserted with the mandrel bar into the drawing die and the drawing material is formed between the drawing die and mandrel. Fixed mandrels are used in sizes ranging from 2.5 to 200 mm pipe diameter. The suitable carbide grade and the high-quality mirror surface finish within the smallest tolerances ensure the maximum service life of the mandrels. These tools can be provided with a surface coating to provide maximum lifetime.

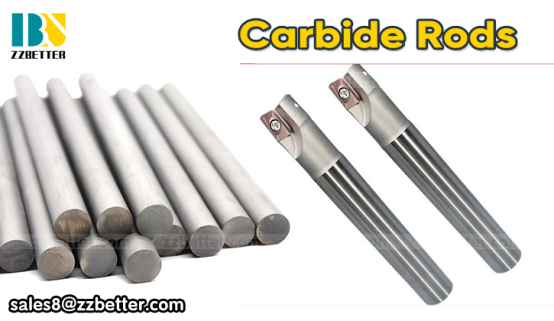

Carbide rods for making tools holders

When you need an anti-vibration tool holder, we will recommend the carbide rods with 15% Cobalt. Usually, the carbide rods for making tool holders are with big diameters, such as 25 mm, 30 mm.


Carbide rods for making plunger

Carbide rods are used for making high-pressure plungers, they are good to wear-resistant and have a high polished finish. They can work well when they are in extreme pressure pumping of various fluids and gasses. They can increase the pump’s internal life cycle. The popular sizes are D22*277 mm, D26*277 mm, D33*270 mm, D17*230 mm.

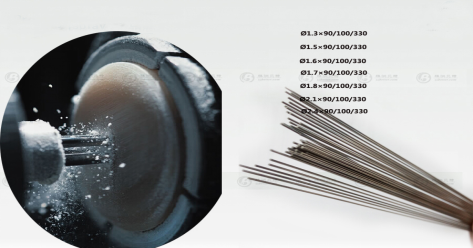

Carbide rods for making piercing tools

Do you know how to make the holes of the cloth buttons? Most buttons factories use carbide rods.

They will sharpen the tips of the carbide rods and install them on the machine. The diameter of the carbide rods always is 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, and so on. The length of the carbide needles is 80 mm,90mm, 100 mm, 330 mm. According to different materials of the buttons, such as seashell buttons, plastic buttons, there are different grades of the carbide rods for them.


However you can't see the carbide rods in your life, but there is a close connection between the development of the industry to the carbide rods.

Would you please leave your comments if there are any other applications of the carbide rods that we didn't mention in this article?
